Throttling Distributor
Disclaimer: Product specifications may change without prior notice. To ensure accuracy, please confirm all details with our team before ordering.
Description
Introduction:

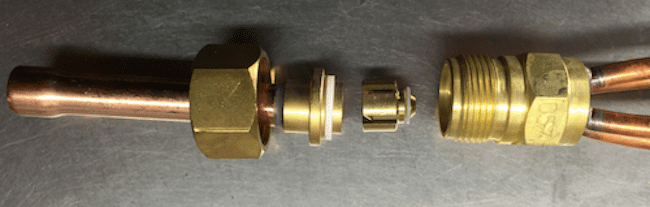

This structure is a combination of throttling and diversion functions of the refrigerant. It can be used to replace the integrated structure of capillary assembly, TXV and check valve. We can provide separate distributor assemblies and connecting parts, and also provide integrated structure of valve spool and distributor. At the same time, we can ensure high-quality welding and design the most reasonable and cost-efficient usage plan for you.
Features and Advantages:
- Low cost. The throttling part and distributor part are integrated, which is cost-efficient; the combined valve spool is easy to install and transport.
- The number of distributor holes and the capillary specifications can be provided according to your requirements.
- The combined spool is easy to replace without welding.
- The connection to the TXV does not require welding.
- The size of the plug connection is designed according to your requirements.
- Distributor material: brass, copper or aluminum.
How to choose an appropriate throttling distributor:
Throttling distributor specifications:
| Name | Connected capillary specification (inch) | Number of distributor holes G | A (interface size)
(mm) |
B
(mm) |
C
(mm) |
D、E、F(mm) | Spool specification H |
|---|---|---|---|---|---|---|---|
| Throttling distributor | 5/32,3/16,1/4, 5/16,3/8 | 2-28 | 6.35-15.88 | 80-200 | 025—1200 | 4-12 | It’s up to you. |
How to choose a combined spool throttling distributor?
Step 1: Provide information to us according to the following table;
| Connected capillary specification | Number of distributor holes G | A (interface size) | B | C | D、E、F | H |
|---|---|---|---|---|---|---|
| ? | ? | ? Recommended unless otherwise specified | Recommended by us | ? It’s up to you. | ? Recommended unless otherwise specified | ?Follow the selection method of the spool specification, determined by you |
Step 2: We provide drawings for your confirmation;
Step 3: Confirm the drawings and arrange samples.
