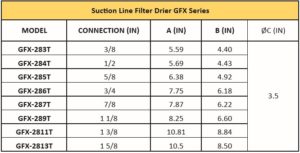

GFX Series Suction Line Filter Drier


The GFX series suction line filter drier, uses a high-density filter that effectively filters impurities. It is installed at the end of the system to focus protection on the compressor.


  • High density filter effectively filters impurities
  • Pressure drop can be monitored through two access valves, helping to determine system operating condition
  • Filtration: 20 microns
  • Drying and filtering effect combination
  • Minimized pressure drop design improves system performance
  • Corrosion resistant, epoxy powder coated, passed 500 hours salt spray test
  • Connection type:ODF
  • Refrigerant: R12, R134A, R22, R404A, R407C, R410A, R500, R502, R507
  • Maximum working pressure: 4.7 MPa/680 psi
  • With cULus certification
