The Titan Outlet is the engineered solution of wall sealing refrigerant line penetrations featuring a weather and air leakage resistant, vibration control, rodent proofing, wall enclosure system, and has become the preferred industry leader.
Airex Titan Outlet
Disclaimer: Product specifications may change without prior notice. To ensure accuracy, please confirm all details with our team before ordering.
Description

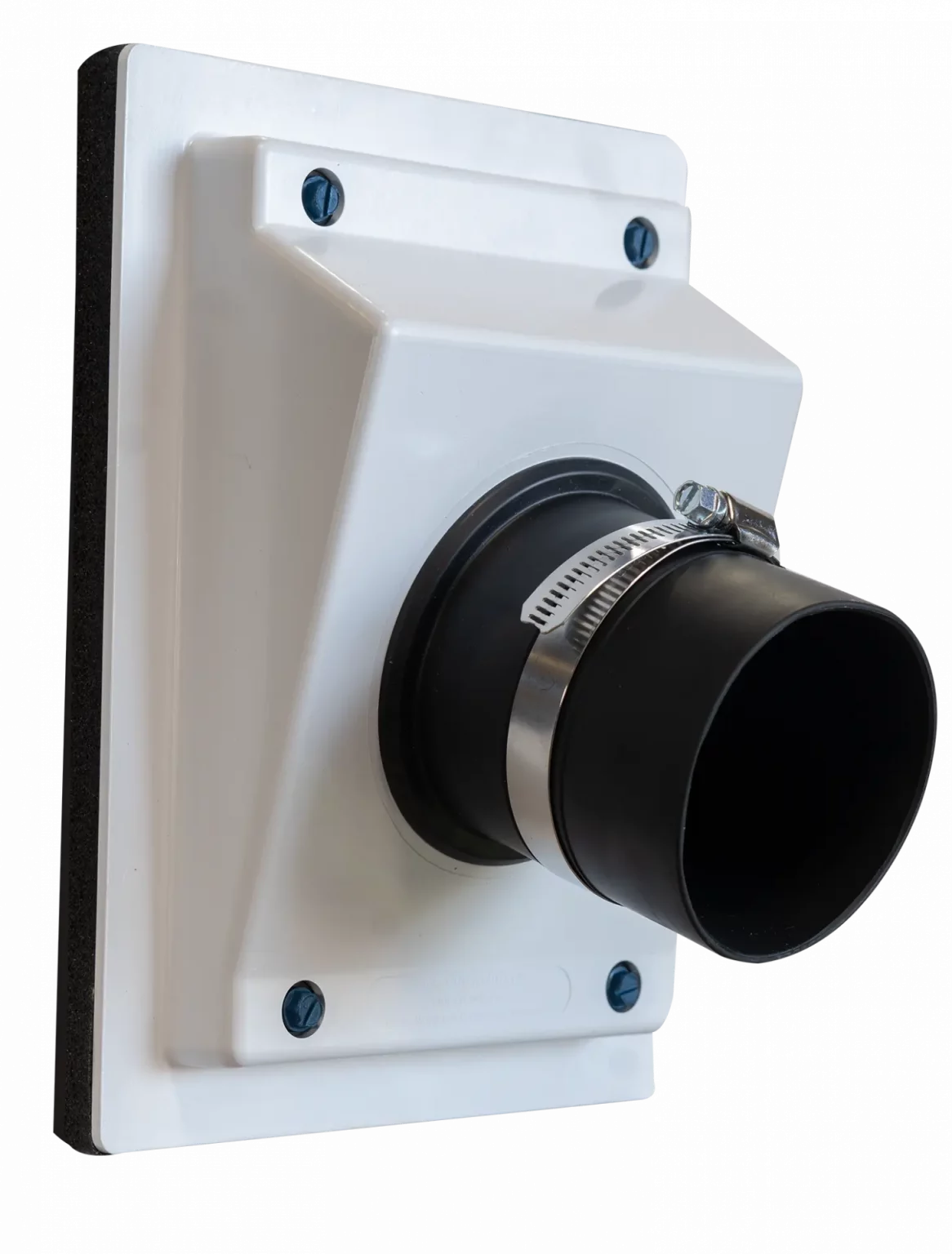

The AIREX TITAN OUTLET™ is an engineered wall enclosure system that seals and protects HVACR piping penetrations from weather damage, air leakage, pipe vibration, and pests to help HVACR professionals aesthetically meet mandatory building requirements and energy efficiency standards. Utilizing weather resistant and outdoor durable engineered polymers, the AIREX TITAN OUTLET™ enclosure is made of ASA polymer, while the elastomeric outlet sleeve is made of an engineered TPE polymer for airtight sealing around HVAC piping. The enclosure and sleeve are bonded together through a process called over-molding, chemically and mechanically bonding them together as one piece. The wall surface gasket attached to the outlet enclosure is durable PVC foam that creates a positive seal on irregular surfaces. Included accessories consist of 4 carbon steel anchor screws and one stainless-steel clamp to ensure outdoor installation durability. Utilize the AIREX TITAN OUTLET™ to aesthetically meet mandatory building requirements and energy efficiency standards.
SEALS OUTDOOR PIPE PENETRATIONS!
Improves HVACR equipment performance by protecting from weather and physical damage.
Creates highest quality positive gasket seal, protecting from weather, eliminating rodent and pest intrusion, ending wall air leakage, reducing moisture damage to walls, increasing overall energy efficiency, and improving indoor air quality.
With a sleek architectural finish, it improves the aesthetics of HVACR, plumbing, conduit, and other outdoor piping penetrations. • Superior quality and excellent heat/chemical resistant materials and integral over-molded flexible elastomeric sleeve design ensures long-lasting durability.
• Meets mandatory building, energy, residential, mechanical, and green codes • Made in the USA
Engineered design supports HVAC systems with wall isolation & anti-vibration features • Includes corrosion resistant hose clamp, anchor screws with elastomeric washers and lubricant for a long-lasting installation.
Available in standard 3/16” gasket, as well as thicker 3/4” gasket ideal for uneven wall surfaces like lap siding or rugged masonry.
FULL CODE COMPLIANCE INSTALLATION
Outlet Body, Outlet Sleeve made of Superior Outdoor Resistant Materials.

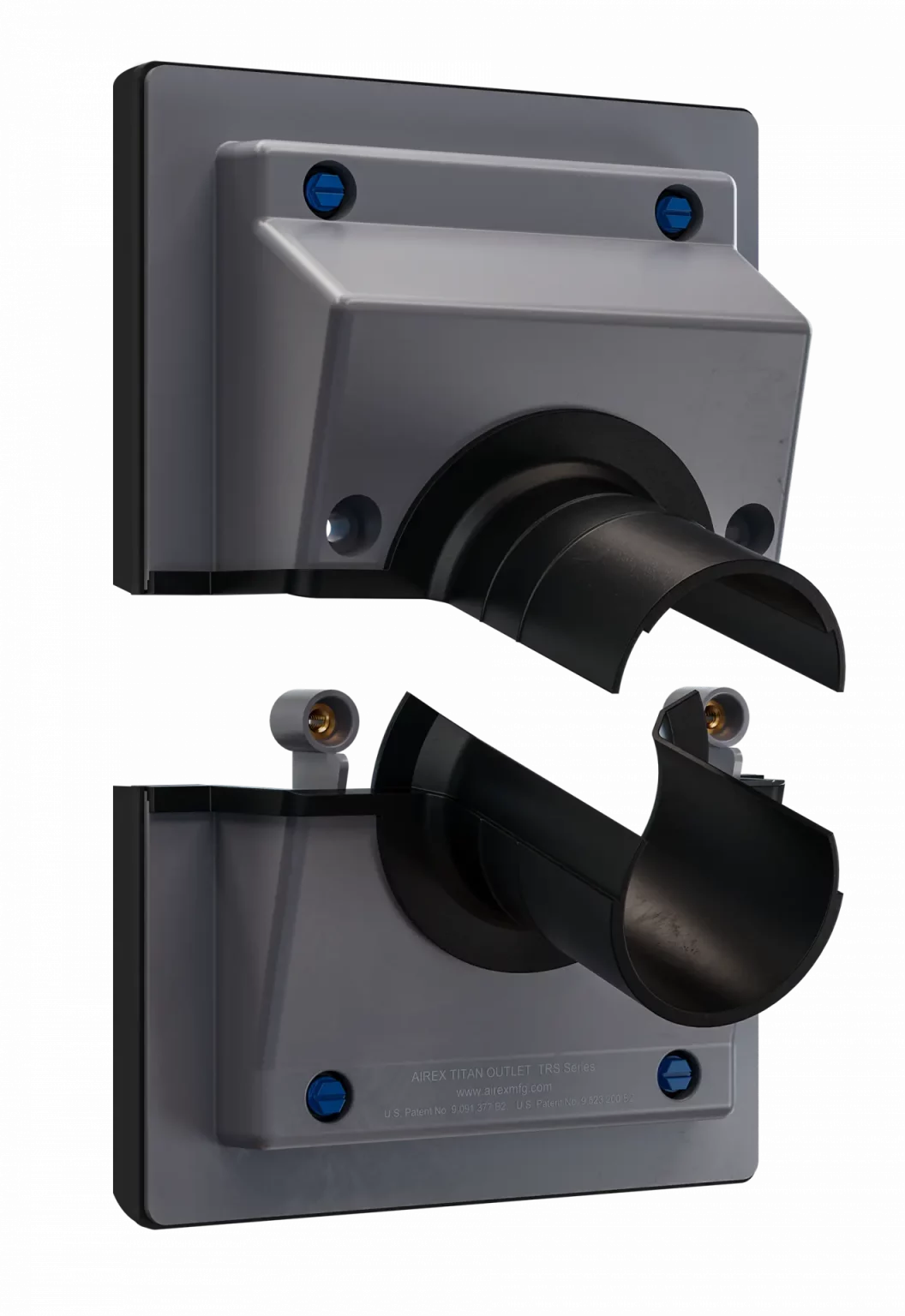

Retrofit Design Allows Outlet to be Removable and Reusable for Maintenance.
Includes Corrosion Resistant Hose Clamp, Anchor Screws with Gasket Washers and Lubricant for a Long-lasting Installation.
APPROVED PERFORMANCE TESTING
ASTM E283 Air Leakage
UL 746C Outdoor Stability-F1 Rating
ASTM E331 Water Penetration
ASTM E2178 Air Permeability
APPROVED MATERIAL TESTING
ASTM D1525C-09 Temperature Deformation
ASTM D648-07 Temperature Load Deformation
UL 94 HB Flammability
ASTM D573-04 Deterioration
ASTM D746-07 Brittleness Temperature
| TGS Series | ||||||||
| GSI P/N | Product Brand | Product Type | Model # | UPC-12 | Fits Pipe Insulation Thickness Inch. | Color | Description | Case Qty |
| 2012019 | AIREX TITAN OUTLET | TGS Series | TGS-550-G | 793573005502 | 1/2″ | Gray | Pipe Penetration Seal with 3/16 in. Gasket, Gray color for Piping Line Set with 1-3/4 in. Diameter | 10 |
| 2012020 | AIREX TITAN OUTLET | TGS Series | TGS-550-W | 79357315501 | 1/2″ | White | Pipe Penetration Seal with 3/16 in. Gasket, White color for Piping Line Set with 1-3/4 in. Diameter | 10 |
| 2012021 | AIREX TITAN OUTLET | TGS Series | TGS-575-G | 793573005755 | 3/4″ | Gray | Pipe Penetration Seal with 3/16 in. Gasket, Gray color for Piping Line Set with 2-3/8 in. Diameter | 10 |
| 2012022 | AIREX TITAN OUTLET | TGS Series | TGS-575-W | 793573015754 | 3/4″ | White | Pipe Penetration Seal with 3/16 in. Gasket, White color for Piping Line Set with 2-3/8 in. Diameter | 10 |
| 2012030 | AIREX TITAN OUTLET | TGS Series | TGS-510-G | 793573005106 | 1″ | Gray | Pipe Penetration Seal with 3/16 in. Gasket, Gray color for Piping Line Set with 3-1/8 in. Diameter | 10 |
| 2012024 | AIREX TITAN OUTLET | TGS Series | TGS-510-W | 793573015105 | 1″ | White | Pipe Penetration Seal with 3/16 in. Gasket, White color for Piping Line Set with 3-1/8 in. Diameter | 10 |
| TRS Series | ||||||||
| GSI P/N | Product Brand | Product Type | Model # | UPC-12 | Fits Pipe Insulation Thickness Inch. | Color | Description | Case Qty |
| 2022001 | AIREX TITAN OUTLET | TRS Series | TRS-550-G | 793573305500 | 1/2″ | Gray | Retrofit Pipe Penetration Seal with 3/16 in. Gasket, Gray color for Piping Line Set with 1-3/4 in. Diameter | 10 |
| 2022002 | AIREX TITAN OUTLET | TRS Series | TRS-550-W | 793573315500 | 1/2″ | White | Retrofit Pipe Penetration Seal with 3/16 in. Gasket, White color for Piping Line Set with 1-3/4 in. Diameter | 10 |
| 2022003 | AIREX TITAN OUTLET | TRS Series | TRS-575-G | 793573305751 | 3/4″ | Gray | Retrofit Pipe Penetration Seal with 3/16 in. Gasket, Gray color for Piping Line Set with 2-3/8 in. Diameter | 10 |
| 2022004 | AIREX TITAN OUTLET | TRS Series | TRS-575-W | 793573315751 | 3/4″ | White | Retrofit Pipe Penetration Seal with 3/16 in. Gasket, White color for Piping Line Set with 2-3/8 in. Diameter | 10 |
| 2022005 | AIREX TITAN OUTLET | TRS Series | TRS-510-G | 793573305102 | 1″ | Gray | Retrofit Pipe Penetration Seal with 3/16 in. Gasket, Gray color for Piping Line Set with 3-1/8 in. Diameter | 10 |
| 2022006 | AIREX TITAN OUTLET | TRS Series | TRS-510-W | 793573315102 | 1″ | White | Retrofit Pipe Penetration Seal with 3/16 in. Gasket, White color for Piping Line Set with 3-1/8 in. Diameter | 10 |
| TSS Series | ||||||||
| GSI P/N | Product Brand | Product Type | Model # | UPC-12 | Fits Pipe Insulation Thickness Inch. | Color | Description | Case Qty |
| 2012025 | AIREX TITAN OUTLET | TSS Series | TSS-550-G | 793573405500 | 1/2″ | Gray | Pipe Penetration Seal for Siding with 3/16 in. Gasket, Gray color for Piping Line Set with 1-3/4 in. Diameter | 10 |
| 2012026 | AIREX TITAN OUTLET | TSS Series | TSS-550-W | 793573415509 | 1/2″ | White | Pipe Penetration Seal for Siding with 3/16 in. Gasket, White color for Piping Line Set with 1-3/4 in. Diameter | 10 |
| 2012027 | AIREX TITAN OUTLET | TSS Series | TSS-575-G | 793573405753 | 3/4″ | Gray | Pipe Penetration Seal for Siding with 3/16 in. Gasket, Gray color for Piping Line Set with 2-3/8 in. Diameter | 10 |
| 2012028 | AIREX TITAN OUTLET | TSS Series | TSS-575-W | 793573415752 | 3/4″ | White | Pipe Penetration Seal for Siding with 3/16 in. Gasket, White color for Piping Line Set with 2-3/8 in. Diameter | 10 |
